JK Smart Battery Management System Solutions

5 0 Reviews

Jk BMS Active Balance

Availability:

Quantity:



Inquire Add to Basket

Model:
BMS
Brand:
JK

Product Description

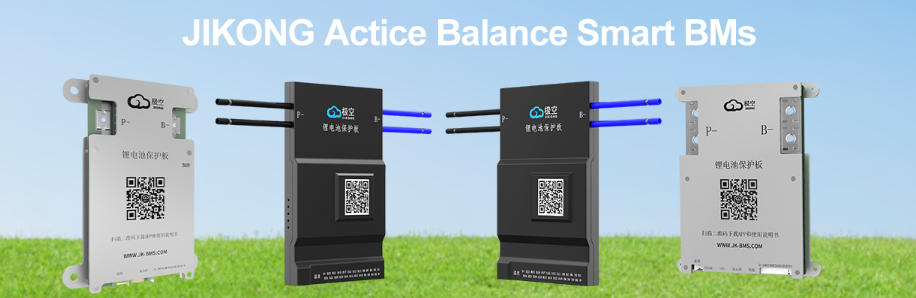

Smart Battery Management System Solutions ( Enjoy A Safe & Smart Life )

JKBMS 2

Built-in BT No need for an additional BT interface, All types of JK BMS have built-in BT

App Download Scan the QR code on jk-bms to download the app

App Connection The connection password is 1234, and the authorization password is 123456.

Active Balance All types of JK BMS are actively balanced

Automatic identification It can automatically identify battery properties, and supports ternary lithium batteries, lithium iron phosphate batteries, and lithium titanate batteries.

One-key setting You can set parameters with one key on the app

Overshoot Protection When the voltage is higher than the set condition, charging will be automatically stopped to protect the battery

Over-discharge protection When the voltage is lower than the set condition, the discharge will be automatically stopped to protect the battery

More Support can and RS485 module, optional, can contact customer service to purchase

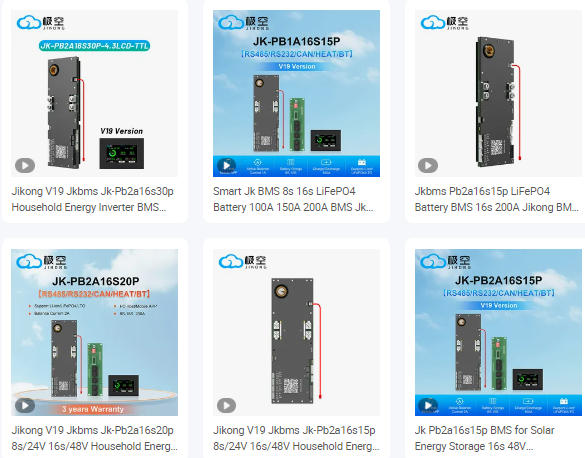

JK-PB系列

The following table lists the parameters of all JKBMS:

PRODUCT MODEL	JK- PB1A16S10P-LCD	JK- PB1A16S15P-LCD	JK- PB2A16S15P-LCD	JK- PB2A16S20P-LCD	JK- PB2A16S30P-LCD
Number of Battery Strings(Li-ion)	7S-16S	7S-16S	7S-16S	7S-16S	7S-16S
Number of Battery Strings(Lifepo4)	8S-16S	8S-16S	8S-16S	8S-16S	8S-16S
Number of Battery Strings{LTO)	14S-16S	14S-16S	14S-16S	14S-16S	14S-16S
Balance Method	Active Balance(Full State On)
Balance Current	1A	1A	2A	2A	2A
Conductive Resistance in Main Circuit	1mΩ	0.45mΩ	0.45mΩ	0.35mΩ	0.25mΩ
Continuous Charge Current	100A	150A	150A	200A	300A
Continuous Discharge Current	100A	150A	150A	200A	200A
Maximum Discharge Current	200A	300A	300A	400A	600A
Over Charge Protection Current(ADJ)	10-100A	10-150A	10-150A	10-200A	10-300A
Other Interfaces(Defaut)	RS485/232/CAN/UART/LCD
Proteetive plate size	30010024mm
Supply Voltage	20-70V
Standby power consumption	12mW
Operating temperature	-30-70掳C
Maximum number ofcollection strings	16S
Wiring Output	Common Port
Display interface	Support
Heating interface	Support
Upper computer function	Support
Bluetooth Function	Support for Android/lOS/Harmony
Charging overwoltage, overeurrent protection	Support
Discharge uder woltage, over currentprotection	Support
Shont eireuit protection	Support
Battery parallel current limiting function	Support
Single Cell Voltage Range	1-5V
Voltage Acquistion Accuracy	±3mV
Over Charge Protection Voltage	1.2-4.4V Adjustable
Over Charge Relese Voltage	1.2-4.4V Adjustable
Over Current Detect Delay	2~600S Adjustable
Over Discharge Protection Voltage	1.2-4.4V Adjustable
Over Discharge Relese Voltage	1.2-4.4V Adjustable
Quantity of Temperature Detection	4
Temp Protection	Yes
Short Circuit protection	Yes
Coulomb Counter	Yes
Parallel charging current limiting	10A
Address dial swith	4
DRY Contact	2

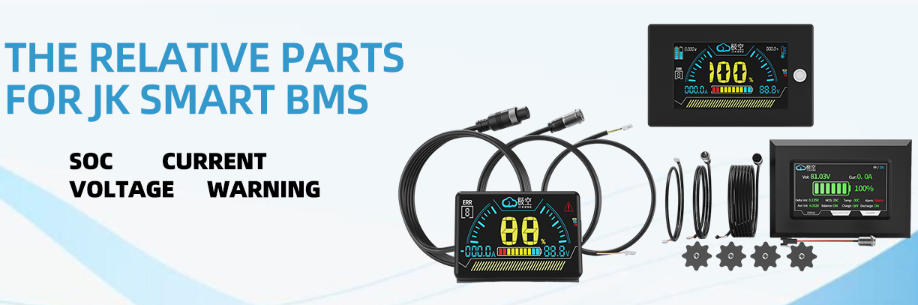

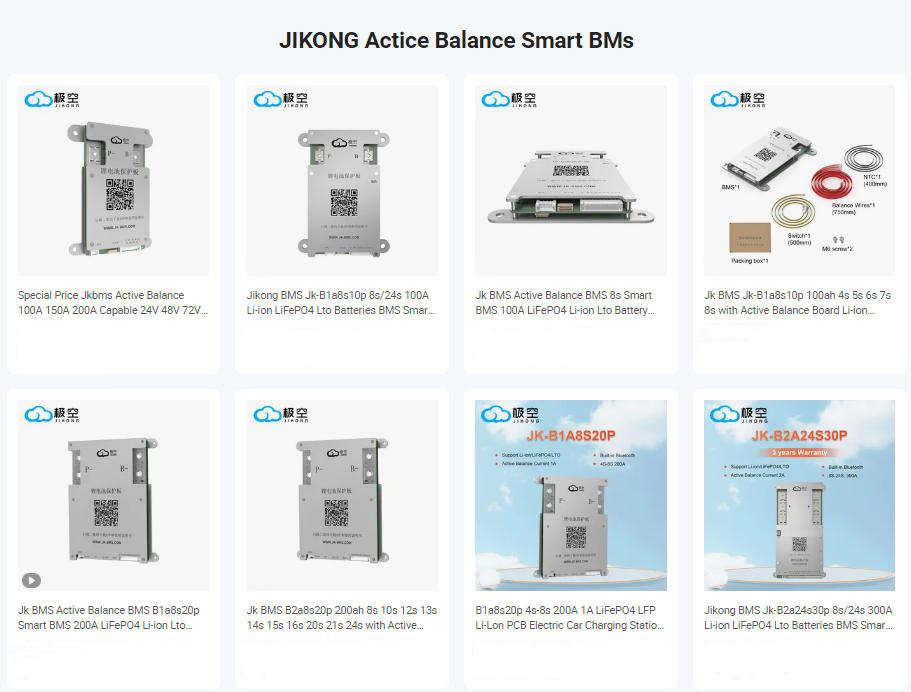

JK-B系列 JKBMS ALL MODELS LCD
